    Screw compressor SCR-18/7EPM power 18 kW, pressure 7 bar, FAD 222 Nm³/h

    scr 18 7 epm
    10 834 € 13 109 € incl. VAT
    On request

    Highly efficient oil-lubricated screw compressor with extreme FAD and permanent magnet motor with IE4 efficiency. The machine was developed with regard to the most efficient production of compressed air in industrial operations and can often replace even compressors with motor power one to two orders of magnitude higher.

    Thanks to the direct drive of the airend with the electric motor, the compressor of the SCR-EPM series works without any energy losses in the transmission system. Compared to compressors with V-belts, a coupling or a gearbox, there is no need for any maintenance, and in addition to energy savings, the user also saves on servicing the machine.

    SCR compressors technology
    SCR compressor motors with permanent magnets have an efficiency of IE4, asynchronous motors then IE3/IE4. Machines with the INNOVANCE inverter have the highest possible IE2 efficiency. It follows that all SCR compressors equipped with an inverter meet the efficiency of the IES2 system according to IEC 61800-9.

    Rental for 5 years (incl. maintenance): 277 € monthly without VAT find out more >

    Extended 5-year warranty: 542 €/13.867 CZK without VAT find out more >

    Transport in the Czech Republic: for free

    Installation anywhere in the Czech Republic: 436 €/11.151 CZK without VAT find out more >

    Detailed information

    Product detailed description

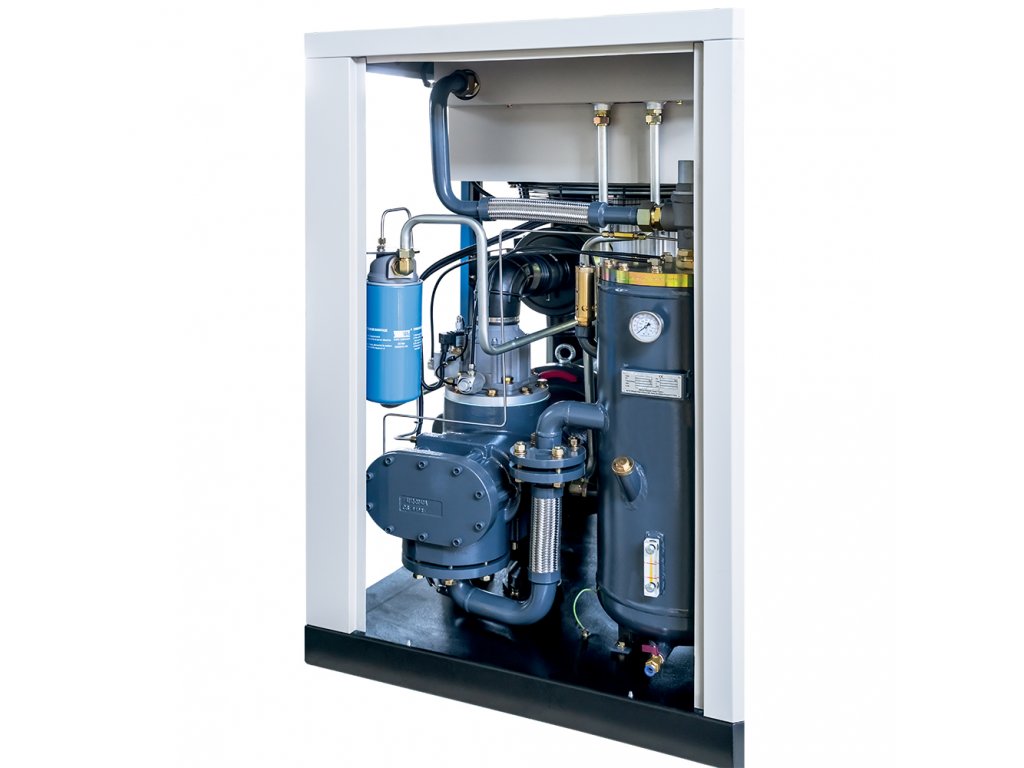

    Lossless direct drive 1:1

    Thanks to the direct connection of the airend to the electric motor, the SCR-EPM series compressors operate without any energy loss in the transmission unit. Compared to compressors with V-belts, coupling or gearbox, this eliminates any maintenance.

    more about the benefits of direct drive >

    PM motor with IE4 efficiency

    The SCR-EPM series brings the latest in oil-lubricated permanent magnet motor technology to the world of small screw compressors. The used PM motors, due to their design, have an extreme efficiency that exceeds the IE4 efficiency requirements of IEC EN 60034 and exceeds the conventional IE2 efficiency motors used as a standard solution for variable speed compressors by an average of 5%. In addition, the design of the PM motor does not contain any bearings, which eliminates the aspect of motor maintenance.

    more about PM motor savings >

    Frequency converters with vector control

    The SCR-EPM compressors are equipped with state-of-theart INOVANCE frequency converters, which allow them to maintain the required output pressure and adapt the speed of the drive unit to the immediate needs of the compressed air supply.

    SCR9000 electronic controller

    The modern electronic controller with a 7" color touch screen in the Czech and 5 other languages with perfect software equipment that allows many user settings, display of parameters about the operation of the machine and reporting of possible faults.

    more about SCR9000 >

    Efficient oil separation

    SCR-EPM series screw compressors are equipped with a highly efficient oil separation system that ensures perfect compressed air output quality with a peak oil content of < 3 ppm.

    Additional parameters

    Category: SCR-EPM Screw compressors
    Series: SCR-EPM
    Type: screw compressor
    Lubrication: oil
    Transmission: direct
    Drive: variable speed
    Motor efficiency: IE4
    Power input: 18,5 kW
    Pressure: 7 bar
    Max. pressure: 7 bar
    Min. pressure: 6 bar
    FAD (max.): 222 Nm³/h
    FAD (min.): 78 Nm³/h
    Output: 1"
    Air ventilation: 5 400 m³/h
    Noise level: 66 dB(A)
    Length: 1 200 mm
    Width: 800 mm
    Height: 1 100 mm
    Weight: 480 kg
