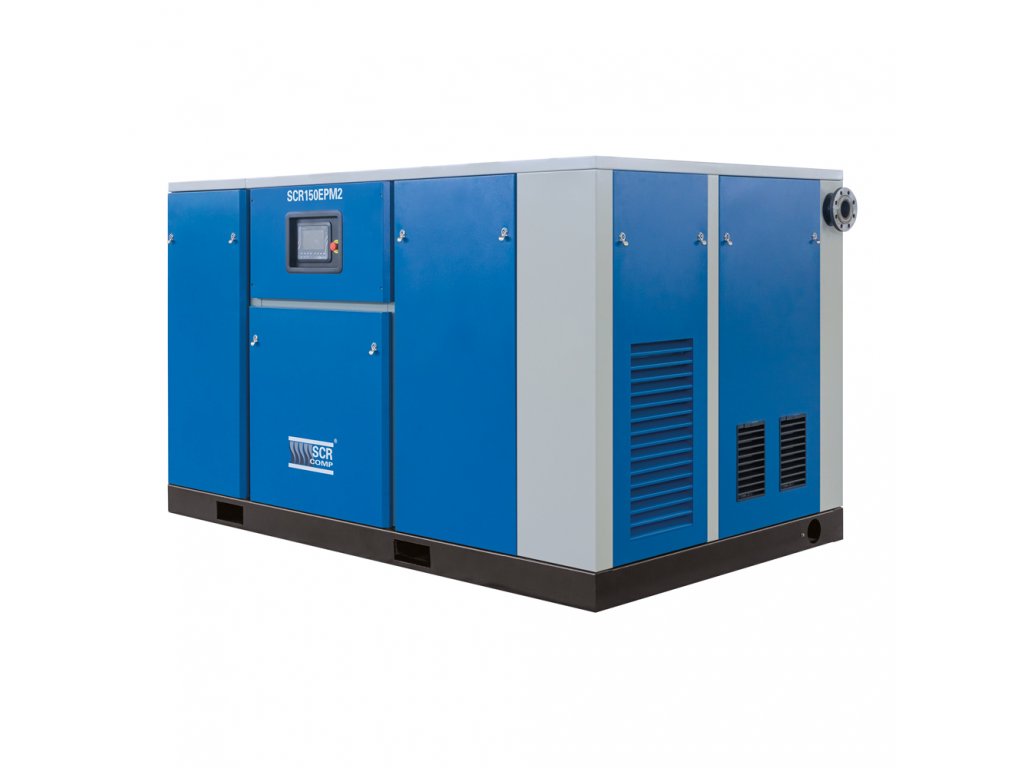

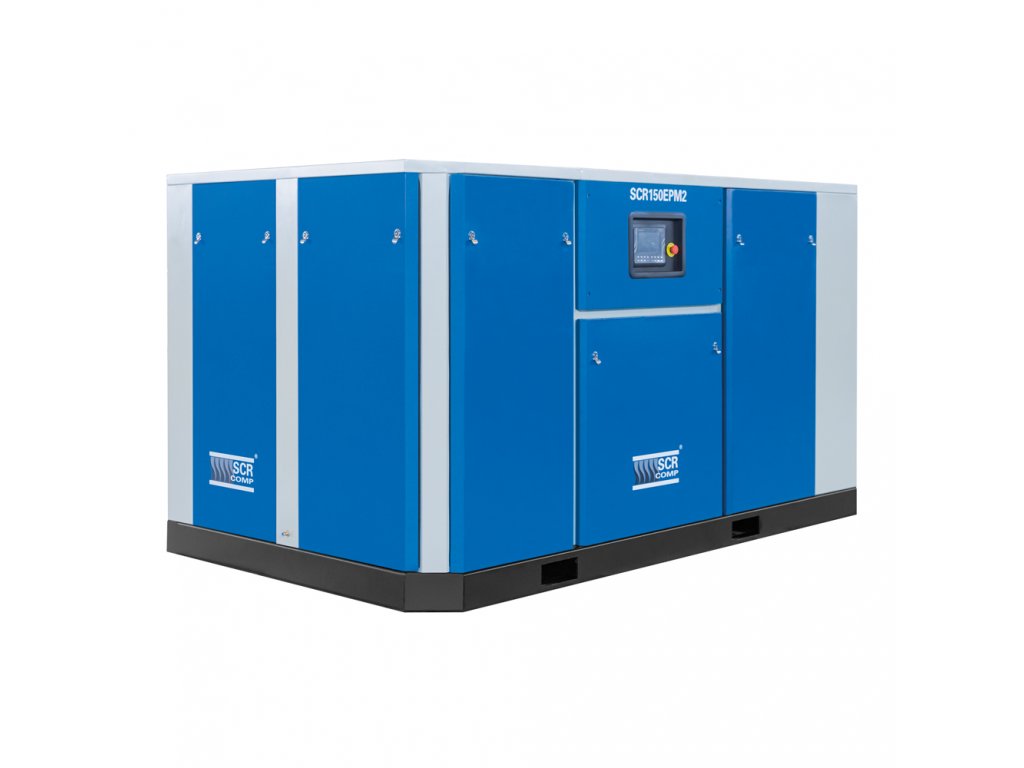

Screw compressor SCR-160/7EPM2 power 160 kW, pressure 7 bar, FAD 2010 Nm³/h

REQUEST FOR QUOTATION
Price on request
On request

Oil lubricated screw compressor with extreme FAD volume output and with liquid-cooled PM-motor IE4 was developed with regard to the most efficient production of compressed air in industrial plants, using the latest construction elements that provide its user with drastic reduction of financial costs associated with energy consumption.

Thanks to the direct connection of the airend with the electric motor, the SCR-EPM2 compressor works without any energy losses in the transmission. Unlike compressors with V-belts, clutches or gearboxes, this eliminates any maintenance and in addition to energy savings, the user also saves on machine service.

SCR compressors technology
SCR compressor motors with permanent magnets have an efficiency of IE4, asynchronous motors then IE3/IE4. Machines with the INNOVANCE inverter have the highest possible IE2 efficiency. It follows that all SCR compressors equipped with an inverter meet the efficiency of the IES2 system according to IEC 61800-9.

Detailed information

Product detailed description

Lossless direct drive 1:1

Thanks to the direct connection of the airend to the electric motor, the SCR-EPM2 series compressors operate without any energy loss in the transmission unit. Compared to compressors with V-belts, coupling or gearbox, this eliminates any maintenance.

more about the benefits of direct drive >

Liquid-cooled PM-motor IE4

The SCR-EPM2 series compressors bring to the market a unique technology of permanent magnet motors with independent liquid cooling, which due to their design have extreme efficiency, which far exceeds the efficiency requirements of IE4 according to IEC EN 60034 standard and exceed commonly used asynchronous motors by up to 5%.

more about PM motor savings >

Frequency converters with vector control

The SCR-EPM2 compressors are equipped with state-of-theart INOVANCE frequency converters, which allow them to maintain the required output pressure and adapt the speed of the drive unit to the immediate needs of the compressed air supply.

SCR9000 electronic controller

The modern electronic controller with a 7" color touch screen in the Czech and 5 other languages with perfect software equipment that allows many user settings, display of parameters about the operation of the machine and reporting of possible faults.

more about SCR9000 >

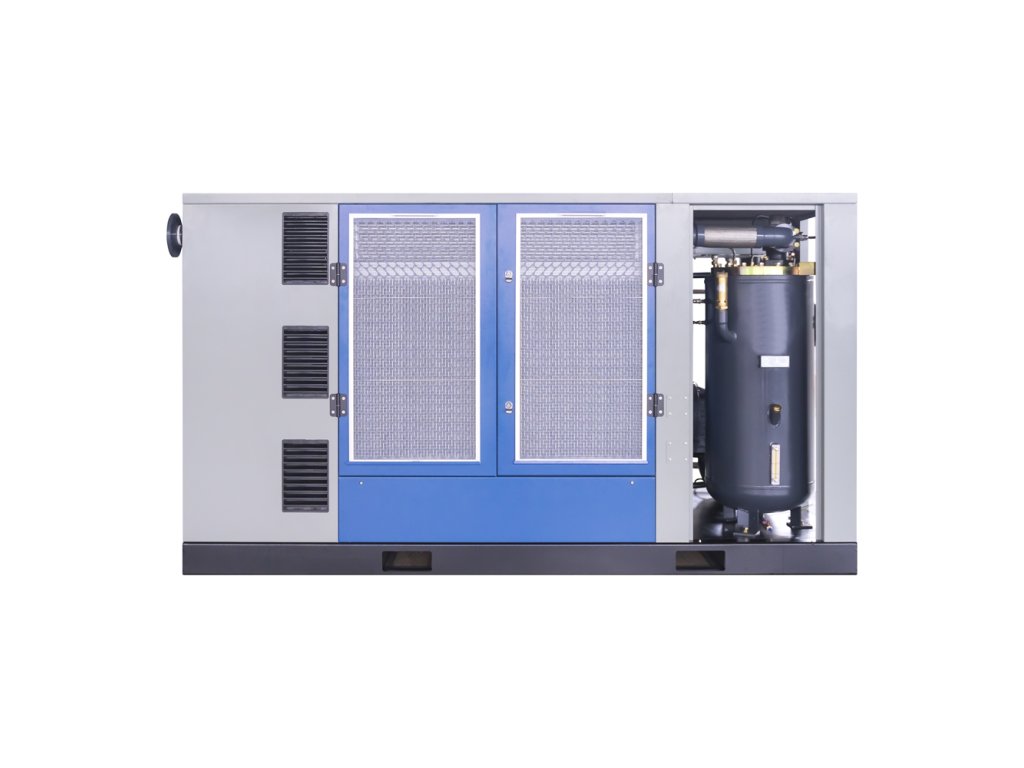

Efficient oil separation

SCR-EPM2 series screw compressors are equipped with a highly efficient oil separation system that ensures perfect compressed air output quality with a peak oil content of < 3 ppm.

Additional parameters

Category: SCR-EPM2 Screw compressors
Series: SCR-EPM2
Type: screw compressor
Lubrication: oil
Transmission: direct
Drive: variable speed
Motor efficiency: IE4
Power input: 160 kW
Pressure: 7 bar
Max. pressure: 7 bar
Min. pressure: 6 bar
FAD (max.): 2010 Nm³/h
FAD (min.): 558 Nm³/h
Output: DN 80
Air ventilation: 30 000 m³/h
Noise level: 78±3 dB(A)
Length: 2 700 mm
Width: 1 650 mm
Height: 2 150 mm
Weight: 3 150 kg

Energy first!

Based on our experience, electricity costs account for more than 80% of all costs over a 10-year time horizon. This is roughly 14 times more than the purchase price of a compressor. It is therefore definitely worth finding out about how economical the machine you are considering is before you buy it.

Especially at a time of extreme growth in electricity bills…

electricity
compressor price
installation
maintenance
Energetické úspory

Liquid-cooled IE4 efficient PM-motors

The latest generation of permanent magnet electric motors reduces energy costs by several percent compared to IE2 standards.

more about PM motor savings >

No idling

A wide speed control range using a frequency converter with vector control prevents unnecessary power consumption for no-load operation.

more about savings with speed control >

Lossless direct drive

The direct connection between the airend and the motor has none of the losses found in many other types of transmissions.

more about the benefits of direct drive >

No unnecessary pressure

The SCR9000 electronic controller allows easy adjustment of the outlet pressure to the exact required level. At the same time, the compressor works with a significatnly narrower pressure range than conventional fixed-speed compressors thank to a frequency converter. As a result, there is no need to produce more pressure than is actually needed, and about 7% of energy can be saved by reducing the pressure by 1 bar.

more about pressure adjustment >

Elimination of consumption leaks

The machine's software allows you to set a precise weekly schedule with scheduled downtime to avoid producing air to cover leaks, e.g. at the weekend and 4 pressure bands for precise adjustment of output pressure.

more about elimination of consumption leaks >

Modern cooling

The cooling fan is also continuously controlled for even greater savings. If it is not needed, the fan is not running and does not consume any extra energy.

more about efficient ventilation >

Video

SCR-EPM2 video

Get to know SCR-EPM2 series through a video presentation.
